EVM Products Key Features(Part1)
25G LR TOSA/ROSA EVM
25G/56G/112G SFP112 module compliance board(180D)
25G LR TOSA/ROSA EVM
- Operation Temp:-40~+85C
- Support 25G LR(DFB) TOSA / ROSA with 6pin Flexible PCB(standard pitch 0.79mm)
- Software support for IC (Control all function) with I2C control Kit(Option)
- Build in CDR(TX and RX ON/OFF bypass mode)
- Build in BER function(PRBS PPG inside)
- Build in Loopback function(Optical loop / Electrical loopback)
- Support TOSA bias 100mA/modulation 75mA
- Support TX/RX output eye diagram performance tunning
- MCU:C8051F392 Support for transceiver design
- CDR for 24.0~26.5Gpbs , 19.6~23Gbps , half rate re-timing
- 90 degree SMA cable support
- Matching all trace length of TX/RX
- Switch control(TXDIS)
- Two voltage mode(3.3V tunning mode / 3.3V fixed mode)
- Pin jump control for TXRS1/RXRS0
- ROSA RSSI current monitor pin support
- Board size:88x56mm
- 28Gbps for another solution , please contact us
Application
- SFP28 optical module
- Active optical cable
- 25GBE
- CPRI
- 25G LR TOSA/ ROSA verification
- 25G light source / light detector equipment
25G SR TOSA/ROSA EVM
25G/56G/112G SFP112 module compliance board(180D)
25G LR TOSA/ROSA EVM
- Operation Temp:-40~+85C
- Support 25G SR(VCSEL) TOSA / ROSA with 6pin Flexible PCB(standard pitch 0.79mm)
- Software support for IC (Control all function) with I2C control Kit(Option)
- Build in CDR(TX and RX ON/OFF bypass mode)
- Build in BER function(PRBS PPG inside)
- Build in Loopback function(Optical loop / Electrical loopback)
- Support TOSA bias 12.8mA/modulation ~1100mVpp
- Support TX/RX output eye diagram performance tunning
- MCU:C8051F392 Support for transceiver design
- CDR for 24.0~26.5Gpbs , 19.6~23Gbps , half rate re-timing
- 90 degree SMA cable support
- Matching all trace length of TX/RX
- Switch control(TXDIS)
- Two voltage mode(3.3V tunning mode / 3.3V fixed mode)
- Pin jump control for TXRS1/RXRS0
- ROSA RSSI current monitor pin support
- Board size:88x56mm
- 28Gbps for another solution , please contact us
Application
- SFP28 optical module
- Active optical cable
- 25GBE
- CPRI
- 25G SR TOSA / ROSA verification
- 25G light source / light detector equipment
25G/56G/112G SFP112 module compliance board(180D)
25G/56G/112G SFP112 module compliance board(180D)
25G/56G/112G SFP112 module compliance board(180D)
- Operation Temp:-40~+85C
- Support SFP+ / SFP28 / SFP56 SFP112 Transceiver
- DDMI Connection(I2C)
- Pin for Standard MSA
- 3 types VCC input (Header pin /4mm Barana)
- Switch control(VCCT/ VCCR/TXDIS/TXRS1/ RXRS0)
- LED monitor(VCCT/VCCR / TXDIS/TXFAULT/ RS1/RS0/ RXLOS/MODABS)
- 4 fixed columns
- Support SFP+ cage
- 180 degree RF cable assembly
- Board size:100x65mm
- Connector durability:250 cycles (min)
25G/56G/112G SFP112 module compliance board(90D)
100G/200G/400G QSFP112 module compliance board(K type)
25G/56G/112G SFP112 module compliance board(180D)
(cage)%20on%20logo-3D.jpg/:/cr=t:0%25,l:0%25,w:100%25,h:100%25/rs=w:388,h:194,cg:true)
- Operation Temp:-40~+85C
- Support SFP+ / SFP28 / SFP56 / SFP112 Transceiver
- DDMI Connection(I2C)
- Pin for Standard MSA
- 3 types VCC input (Header pin /4mm Barana)
- Switch control(VCCT/ VCCR/TXDIS/TXRS1/ RXRS0)
- LED monitor(VCCT/VCCR / TXDIS/TXFAULT/ RS1/RS0/ RXLOS/MODABS)
- 4 fixed columns
- Support SFP+ cage
- 90 degree RF cable assembly
- Board size:100x65mm
- Connector durability:250 cycles (min)
50G/100G SFP-DD module compliance board
100G/200G/400G QSFP112 module compliance board(K type)
100G/200G/400G QSFP112 module compliance board(K type)
- Operation Temp:-40~+85C
- Support SFP+ / SFP-DD Transceiver
- DDMI Connection(I2C)
- Pin for Standard MSA
- 3 types VCC input (Header pin / 4mm Barana / Power Jack)
- Switch control (TXDIS / TXDISDD / TXRS1 / TXRS1DD / RXRS0 / RXRS1DD / InitMode)
- LED monitor(VCC / TXDIS / TXFAULT/ RS1 / RS0/ RXLOS / MODABS / IntL / InitMode)
- 6 fixed columns
- 90 degree RF cable assembly
- Board size:160x90mm
- Connector durability:100 cycles (min)
100G/200G/400G QSFP112 module compliance board(K type)
100G/200G/400G QSFP112 module compliance board(K type)
100G/200G/400G QSFP112 module compliance board(K type)
- Operation Temp:-40~+85C
- Support 100G QSFP28 / 200G QSFP56 / 400G QSFP112 Transceiver
- DDMI Connection(I2C)
- Pin for Standard MSA
- 2 types VCC input (Header pin / 4mm Barana )
- Switch control(VCCT/ VCCR/VCC1/LPMode/ ResetL/MODSEIL)
- LED monitor(VCCT/VCCR/VCC1/ModPrsL / LPMode/ResetL/ MODSEIL/IntL)
- All 16 Signal traces match same length
- 6 fixed columns
- Support QSFP+ cage
- 90 degree RF cable assembly
- Board size:130x100mm
- Connector durability:250 cycles (min)
100G/200G/400G QSFP112 module compliance board(1X8 type)
100G/200G/400G QSFP112 module compliance board(1X8 type)
100G/200G/400G QSFP112 module compliance board(1X8 type)
- Operation Temp:-40~+85C
- Support 100G QSFP28 / 200G QSFP56 / 400G QSFP112 Transceiver
- DDMI Connection(I2C)
- Pin for Standard MSA
- 2 types VCC input (Header pin / 4mm Barana )
- Switch control(VCCT/ VCCR/VCC1/LPMode/ ResetL/MODSEIL)
- LED monitor(VCCT/VCCR/VCC1/ModPrsL / LPMode/ResetL/ MODSEIL/IntL)
- 6 fixed columns
- Support QSFP+ cage
- 1x8 multi-Coaxial SMPM RF cable assembly
- Board size:120x85mm
- Connector durability:250 cycles (min)
400G/800G OSFP module compliance board(K type)
100G/200G/400G QSFP112 module compliance board(1X8 type)
100G/200G/400G QSFP112 module compliance board(1X8 type)
- Operation Temp:-40~+85C
- Support 400G / 800G OSFP Transceiver
- DDMI Connection(I2C)
- Pin for Standard MSA
- 4mm Banana VCC input
- LED monitor (VCC/ModPrsL /Low Power Mode/ResetL/IntL)
- 9 fixed columns
- Function pin connection
- Support OSFP cage
- 90 degree RF cable assembly
- Board size:167x185mm
- Connector durability:100 cycles(min)
400G/800G QSFP-DD module compliance board(K type)
100G/200G/400G QSFP112 module compliance board(1X8 type)
400G/800G QSFP-DD module compliance board(1X8 type)
- Operation Temp:-40~+85C
- Support 400G / 800G QSFP-DD Transceiver
- DDMI Connection(I2C)
- Pin for Standard MSA
- 4mm Banana VCC input
- LED monitor (VCCT/VCCR/VCC1/ModPrsL /InitMode/ResetL/ MODSEIL/IntL)
- 9 fixed columns
- VS1/VS2/VS3/Res46/ePPS/Res69 for pin connection
- Support QSFP-DD cage
- ePPS SMA connector
- 90 degree RF cable assembly
- Board size:159x167mm
- Connector durability:100 cycles(min)
400G/800G QSFP-DD module compliance board(1X8 type)
400G/800G QSFP-DD module compliance board(1X8 type)
400G/800G QSFP-DD module compliance board(1X8 type)
- Operation Temp:-40~+85C
- Support 400G / 800G QSFP-DD Transceiver
- DDMI Connection(I2C)
- Pin for Standard MSA
- 4mm Banana VCC input
- LED monitor (VCCT/VCCR/VCC1/ModPrsL /InitMode/ResetL/ MODSEIL/IntL)
- Support VNA test port
- 9 fixed columns
- VS1/VS2/VS3/Res46/ePPS/Res69 for pin connection
- Module installed backside
- Support QSFP-DD cage
- ePPS SMA connector
- 1x8 multi-Coaxial SMPM RF cable assembly
- Board size:160x110mm
- Connector durability:100 cycles(min)
200G/400G COBO module compliance board
400G/800G QSFP-DD module compliance board(1X8 type)
200G/400G COBO module compliance board
- Operation Temp:-40~+85C
- Support COBO A/B/C type
- DDMI Connection(I2C)
- Pin for Standard MSA
- 3.3V VCC input 4mm Barana
- Switch control(ModSel/ InitMode/TX_Disable)
- Reset bottom
- 1x8 multi-caoxial connectors
- High frequency differential signal :8 pairs input / 8 pairs output
100G DSFP module compliance board
400G/800G QSFP-DD module compliance board(1X8 type)
200G/400G COBO module compliance board
EVM Products Key Features(Part2)
100G(4x25G) NRZ BOX TOSA EVM(Reference design)
100G(4x25G) NRZ BOX TOSA EVM(Reference design)
100G(4x25G) NRZ BOX TOSA EVM(Reference design)
- Operation Temp:-40~+85C
- Support 4 channel x 25G TOSA test
- Software support for IC (Control all function)
- Support TX output eye diagram performance tunning
- CDR for 25.75Gbps / 27.95Gbps /28.05Gbps
- 180 degree miniSMP cable support on input(electrical) port
- 3.3V voltage supply
- Customized design for FPC connect pin
Application
- 4x25G TOSA(Box TOSA)
- 25G GBE
- 32G Fiber channel
100G(4x25G) NRZ BOX ROSA EVM(Reference design)
100G(4x25G) NRZ BOX TOSA EVM(Reference design)
100G(4x25G) NRZ BOX TOSA EVM(Reference design)
- Operation Temp:-40~+85C
- Support 4 channel x 25G ROSA test
- Software support for IC (Control all function)
- Support RX output eye diagram performance tunning
- CDR for 25.75Gbps / 27.95Gbps /28.05Gbps
- 180 degree miniSMP cable support on output(electrical) port
- 3.3V voltage supply
- RSSI monitor support
- Customized design for FPC connect pin
Application
- 4x25G ROSA(Box ROSA)
- 25G GBE
- 32G Fiber channel
25G SR CHIP EVM
100G(4x25G) NRZ BOX TOSA EVM(Reference design)
25G SR CHIP EVM
- Operation Temp:-40~+85C
- Support 25G SR(VCSEL) Chip probe test
- Software support for IC (Control all function)
- Support TOSA bias 12.8mA/modulation ~1100mVpp
- Support TX/RX output eye diagram performance tunning
- CDR for 24.0~26.5Gpbs , 19.6~23Gbps , half rate re-timing
- 180 degree SMA cable support on input(electrical) port
- 180 degree miniSMP cable support on output(optical) port
- 3.3V voltage supply
Application
- 25G SR chip(VCSEL) verification
100G-PPG-MCB
25G NRZ/PAM4 Pattern Generator MCB
25G SR CHIP EVM
- Operation Temp:-40~+85C
- 4x25G NRZ pattern generator
- 25.78Gbps / PRBS31
- Reference Clock output for scope
- 3.3V input power supply
- Power on work
- Low cost & array module TX test
- Compact size 56x88mm2.92mm K type RF connector
- GUI control input and output signal support
100G-PPG-QSFP-SFP-MCB
25G NRZ/PAM4 Pattern Generator MCB
25G NRZ/PAM4 Pattern Generator MCB
- Operation Temp:-20~+70C (Including Module issue)
- 4x25G NRZ pattern generator
- 25.78Gbps / PRBS31
- 2*QSFP28 module slot+1*SFP28 module slot
- Reference Clock output for Optical & Electrical scope
- 5V input power supply
- Power on work
- Super Compact size 10x13cm
- 100G/25G TX Light source with all brand QSFP28/SFP28 module
- 8+1 optical channel TX light source support
- TX & RX crosstalk pre-test
- Fast & simple TX optical module Temperature test
- Less RF cable test
- Low cost & array module TX test
- Module EMI system test possible support
- Standard SFP/QSFP MSA definition
- RX Sensitivity PRBS31 test application
25G NRZ/PAM4 Pattern Generator MCB
25G NRZ/PAM4 Pattern Generator MCB
25G NRZ/PAM4 Pattern Generator MCB
- Operation Temp:-20~+70C
- 1x25G / PRBS31 NRZ pattern generator
- 1x25G / PRBS31Q PAM4 pattern generator
- 1*SFP28 module slot
- Reference Clock output for Optical & Electrical scope
- 5V input power supply
- NRZ pattern Power on work
- 25G TX Light source with all brand SFP28 module
- Fast & simple TX optical module Temperature test
- Less RF cable test
- Low cost & array module TX test
- Module EMI system test possible support
- Standard SFP/QSFP MSA definition
- RX Sensitivity PRBS31 test application
RF cable customized
SFP/SFP+/SFP28-A0-A2 GUI
SFP/SFP+/SFP28-A0-A2 GUI
- High frequency~67GHz
- SMA/K/Q/V/SMP/SMPM type with connector and cable
- Customized cable length
- 1x8 Multi-coaxial connector/cable
SFP/SFP+/SFP28-A0-A2 GUI
SFP/SFP+/SFP28-A0-A2 GUI
SFP/SFP+/SFP28-A0-A2 GUI
- A0+A2 Row data read/write
- Main A0 information show
- Main A2 DDMI+threshold value monitor
- DDMI monitor (Temp/VCC/Bias/TXP/RXP) automatically
- A0 Row data save file and import file
Optical Module Products Key Features

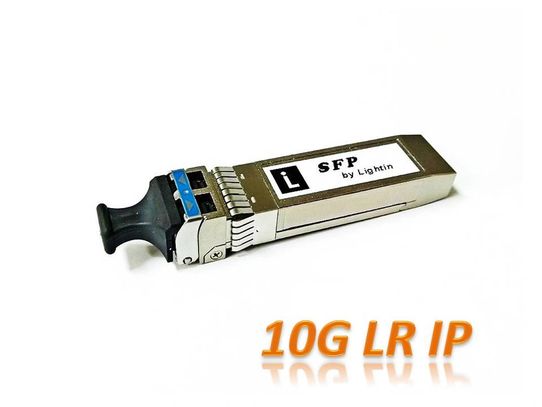

10G LR SFP+ Transceiver
- 1TX+1RX
- 10.3125Gbps with up to 10km
- TX : 1310nm DFB
- RX : PIN Photodetector
- Dual LC Single-Mode Fiber
- +3.3 V Power Supply
- Hot Pluggable
- Digital Diagnostic Monitoring Interface Compliant with SFF-8472 MSA Specification
- SFP MSA Pin definition
- 0~70C & -10~85C temperature
- Application for 10GBE standard
About 25G LR EVM Performance

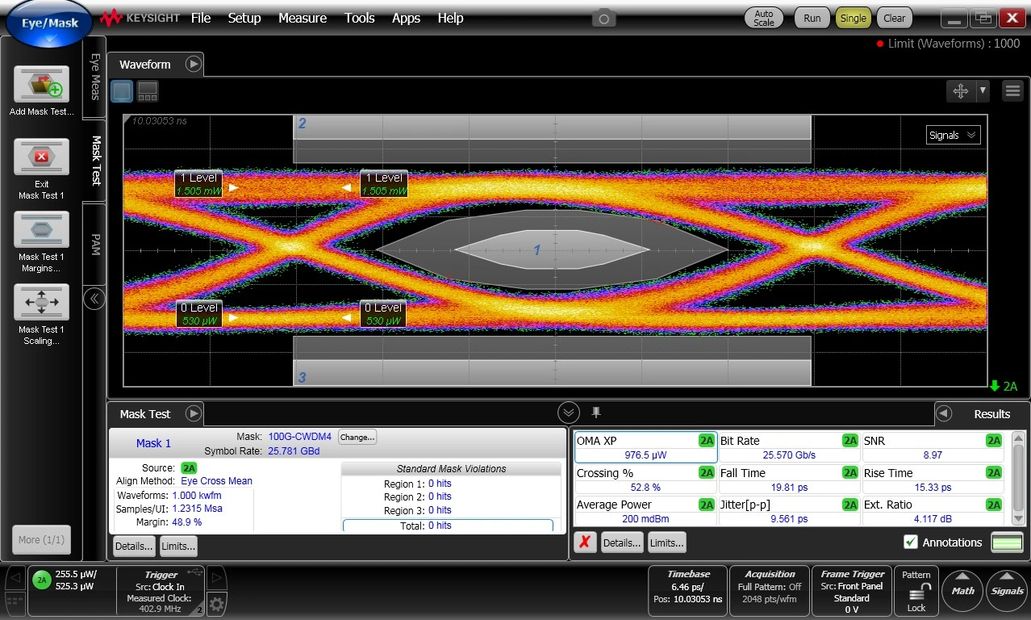

25G TOSA Optical Eye diagram(Eye mask:100G CWDM4: 5E-5 Hit ratio , margin:48.9% , 25C)

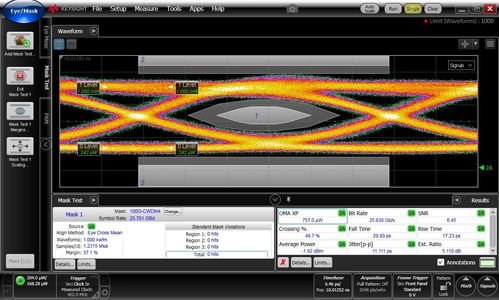

25G TOSA Optical Eye diagram(Eye mask:100G CWDM4: 0 Hit , margin:37.1% , 85C)

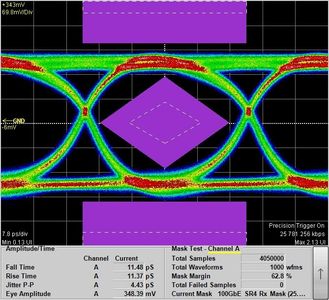

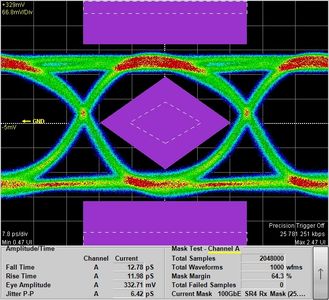

25G LR ROSA Electrical Eye diagram(Eye mask:100G SR4:0 Hit)(BER:-13.0dBm 1E-12)
About 25G SR EVM Performance

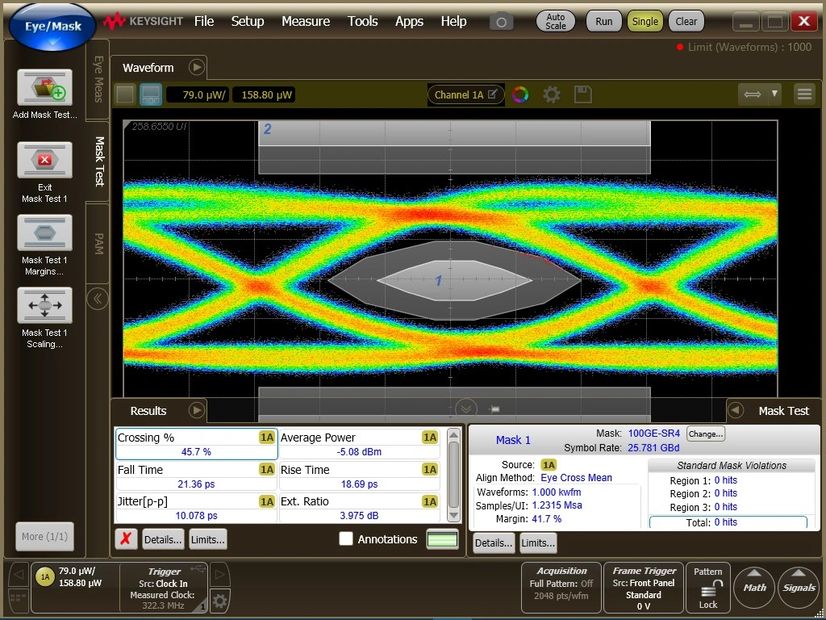

25G TOSA Optical Eye diagram(Eye mask:100G SR4: 5E-5 Hit ratio , margin:41.7% , 25C)
28G TOSA Optical Eye diagram(Eye mask:32GFC MM: 1E-3 Hit ratio , margin:44.5% , 25C)

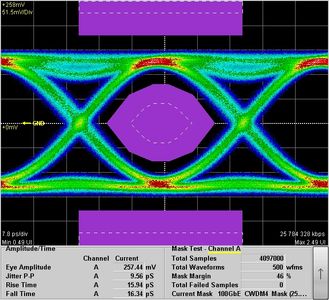

25G Electrical Loopback TX to RX Output with CDR

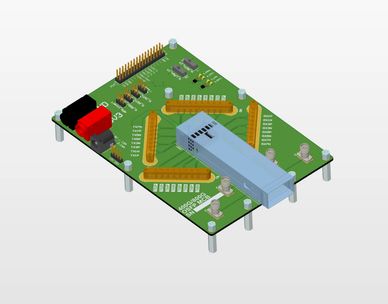

About 100G-PPG-QSFP-SFP-MCB Performance
25G SFP LR module(TX optical eye mask margin:36.9% , 5E-5)
100G QSFP module(TX optical eye margin:>29.6% , 0 hit)
25G Pattern generator electrical output eye
25.75Gbps , PRBS31
About 25G NRZ/PAM4 Pattern Generator MCB
25G PRBS31 NRZ Output
One differential-port channel
25G PRBS31Q PAM4 Output
Daul differential-port channels
